Patient-derived response estimates from zero-passage organoids of luminal breast cancer

Abstract

Background

Primary luminal breast cancer cells lose their identity rapidly in standard tissue culture, which is problematic for testing hormone interventions and molecular pathways specific to the luminal subtype. Breast cancer organoids are thought to retain tumor characteristics better, but long-term viability of luminal-subtype cases is a persistent challenge. Our goal was to adapt short-term organoids of luminal breast cancer for parallel testing of genetic and pharmacologic perturbations.

Methods

We freshly isolated patient-derived cells from luminal tumor scrapes, miniaturized the organoid format into 5 µl replicates for increased throughput, and set an endpoint of 14 days to minimize drift. Therapeutic hormone targeting was mimicked in these “zero–passage” organoids by withdrawing β-estradiol and adding 4-hydroxytamoxifen. We also examined sulforaphane as an electrophilic stress and commercial nutraceutical with reported anti-cancer properties. Downstream mechanisms were tested genetically by lentiviral transduction of two complementary sgRNAs and Cas9 stabilization for the first week of organoid culture. Transcriptional changes were measured by RT-qPCR or RNA sequencing (RNA-seq), and organoid phenotypes were quantified by serial brightfield imaging, digital image segmentation, and regression modeling of volumetric growth rates.

Results

We achieved > 50% success in initiating luminal breast cancer organoids from tumor scrapes and maintaining them to the 14-day zero-passage endpoint. Success was mostly independent of clinical parameters, supporting general applicability of the approach. Abundance of ESR1 and PGR in zero-passage organoids consistently remained within the range of patient variability at the endpoint. However, responsiveness to hormone withdrawal and blockade was highly variable among luminal breast cancer cases tested. Combining sulforaphane with knockout of NQO1 (a phase II antioxidant response gene and downstream effector of sulforaphane) also yielded a breadth of organoid growth phenotypes, including growth inhibition with sulforaphane, growth promotion with NQO1 knockout, and growth antagonism when combined.

Conclusions

Zero-passage organoids are a rapid and scalable way to interrogate properties of luminal breast cancer cells from patient-derived material. This includes testing drug mechanisms of action in different clinical cohorts. A future goal is to relate inter-patient variability of zero-passage organoids to long-term outcomes.

Background

The heterogeneity of luminal breast cancer [1] is difficult to capture with existing cell lines [2,3,4] and mouse models [4, 5] of the disease. Luminal breast cancer is partly defined by expression of the estrogen receptor (ESR1), and drugs targeting ESR1 or its ligands are a mainstay of therapy for 5–10 years after surgery [6]. For early-stage luminal cancers, it can take decades to determine whether these interventions are clinically effective [7, 8]. A faster setting for primary cancers would be highly desirable if it kept cells true to the luminal subtype.

One potential way to obtain an accelerated glimpse of cancer-cell trajectories is through patient-derived organoids [9, 10]. An early biobank of breast cancer organoids [11] preceded culture formulations geared to luminal cancers, yielding organoid lines with considerable losses in ESR1 positivity [12]. More generally, the success rate for long-term culture of luminal breast cancer organoids is only 30% [13]. Existing protocols [12] begin with whole-tumor pieces, creating a bottleneck of patient consents and non-standard handling that prevents luminal breast cancers from being fully utilized for research. Strategies for more widely establishing authentic luminal organoids would enable deeper studies of patient-to-patient variation in response to therapy or perturbations of cancer-relevant pathways.

Here, we introduce a zero-passage approach to the primary culture of luminal breast cancer organoids that retains cell identity and yields patient-specific estimates of response to molecular and genetic perturbations within two weeks of surgery. Success rates with material from primary tumor scrapes are roughly double that of previous reports [13]. The approach avoids disruptions to standardized handling of surgical specimens and miniaturizes established methods [12] to yield dozens to hundreds of organoids per replicate in six or more replicates for parallel testing. The procedure was seamlessly adopted by a 20-person team of surgeons, pathologists, and organoid culturists at the University of Virginia and could be extended to other medical research settings in the future.

Methods

Tissue procurement

Human sample acquisition and experimental procedures were carried out in compliance with regulations and protocols approved by the IRB-HSR at the University of Virginia in accordance with the U.S. Common Rule. In accordance with IRB Protocol #14176, scrapes of primary ESR1-positive breast tumors were collected after macrodissection with a scalpel razor. Each scrape was dabbed onto a glass slide (Fisherbrand, #12-550-433) and immediately transferred into a 50-ml conical tube with 35 ml adDMEM+ (35 ml Advanced DMEM/F12 (Gibco, #12634010) supplemented with 350 μl 1 M HEPES (Gibco, #15630080; final concentration = 10 mM), 350 μl GlutaMAX (Gibco, #35050061), 350 μl penicillin–streptomycin (Gibco, #15140122; final concentration = 100 U/ml)), and 70 μl Primocin (Invivogen, #Ant-pm-1; final concentration = 100 µg/ml) and placed on wet ice.

Plasmids

pDual_dsCas9_Venus was prepared by In Fusion cloning (Takara, #638952) using EDCPV vector (Addgene, #90085) linearized with BsmBI (NEB, #R0739S) and a PCR based insert produced by Phusion DNA Polymerase (NEB, #M0530L) containing a second sgRNA cloning site (SbfI), gRNA scaffold, and U6 promoter from pX333 vector (Addgene, #64073). Venus was replaced with mTagBFP2 (from lentiGuide-Hygro-mTagBFP2; Addgene #99374), Puromycin resistance (from site pCW-Puro; Addgene, #50661; after removing its BsmBI site by silent mutation), or Blasticidin resistance (from pCW-Cas9-Blast; Addgene, #83481) by In Fusion cloning into pDual_dsCas9_Venus digested with BamHI-HF (NEB, #R3136). Dual-sgRNAs against chromosome 1 non-coding locus, chromosome 2 non-coding locus, NQO1, NFE2L2, and TP73 were designed with CRISPOR [14], annealed, and introduced by In Fusion cloning into pDual_dsCas9_Venus/BFP/Puro/Blast linearized with SbfI (NEB, #R0642S) or BsmBI (NEB, #R0739S). All plasmids were verified by sequencing and deposited with Addgene (#214678–214692). Oligonucleotides sequences for dual-sgRNAs, PCR cloning, and genotyping are listed in Additional file 1: Table S1A, B.

Organoid culture

Initiation: Three 50-ml conical tubes each containing two glass slides of tumor scrapes were centrifuged at 450 rcf for 5 min at 8ºC to detach and pellet cells. The slides and supernatant were removed, and the pellet was washed with D-BSA (DMEM GlutaMAX (Gibco, #10569010) containing penicillin–streptomycin (Gibco, #15140122; final concentration = 100 U/ml) and 0.1% fatty acid-free BSA (Sigma, #A6003)). Pellets were washed with D-BSA three times in 15-ml or 1.5-ml tubes (depending on pellet size) to remove dead cells, debris, and fat. Next, the pellet was digested in Type 1 medium [12] containing collagenase II (Fisher, #17101015; final concentration = 1 mg/ml) and ROCK inhibitor (StemCell #72304; final concentration = 10 μM) for 15 min at 37ºC with shaking. 15-ml conical tubes were placed at a ~20° angle in an orbital shaker at 140 rpm (New Brunswick I26 Incubator Shaker) while 1.5-ml microcentrifuge tubes were inserted in a small benchtop shaker at 350 rpm (Eppendorf Thermomixer 5350 Mixer). The digestion was stopped by adding 1/10th volume of FBS (Gibco, #16170086) directly to the tube and pipetting vigorously with a 1-ml micropipette. If large particulates were present, the sample was passed through a pre-wet 100-μm strainer (VWR, #76327102). To remove red blood cells, the cell pellet was mixed with RBC lysis buffer (Sigma, #11814389001) and incubated at room temperature for 2 min. After a final wash with D-BSA, the cells were split for organoid culture and (if possible) 2D culture. For organoid culture, the pellet was suspended in growth factor-reduced matrigel (Corning, #354230). The volume of matrigel depended on the cellular yield, with 40 μl matrigel used to resuspend a pellet of 10 μl and scaling linearly for larger pellets. The matrigel suspension was serially dispensed as one 5 μl drop per well in a 96-well plate. Paired 2D cultures were initiated by suspending cell pellets in Type 2 medium [12] and plating on the same 96-well plate as matrigel-embedded organoids. The first 20 cases were initiated as 20 µl drops in a 48-well plate according to published recommendations [12], and volumes of 1–7 µl were tested during optimization. The drops were solidified upside down in a 37ºC incubator for 30 min and then 100 μl pre-warmed Type 2 medium was added to each well. For low-attachment plates, 1–5 µl drops were solidified upright in a 37ºC incubator for 30 min.

Maintenance: Organoids were kept in a humidified 37ºC incubator with 5% CO₂ and refed every 2–4 days by gently removing old media and adding fresh Type 2 medium, which was prepared weekly. For the first 20 cases when passaging was attempted, TrypLE (Gibco, #12604013) was used to dissociate the matrigel and organoids were mechanically sheared by forcefully pipetting up and down. The cells were washed with ice-cold adDMEM+ and centrifuged at 300 rcf for 5 min. Matrigel-free dissociated organoids were resuspended in fresh ice-cold matrigel by carefully pipetting up and down. The matrigel-suspended cells were plated in one 20 μl drop per well in a 48-well plate. The drops were solidified upside down in a 37ºC incubator for 15 min and then 100 μl of pre-warmed Type 2 medium was added to each well.

Freezing and thawing: For cryopreservation, cultures were minimally digested with TrypLE to dissolve the matrigel but retain the organoids intact. Organoids were washed with ice-cold adDMEM+ and centrifuged at 300 rcf for 5 min. The matrigel-free dissociated organoids were resuspended in Recovery Cell Freezing Medium (Gibco, #12648010) and transferred to a –80ºC cell-freezing container for at least overnight before transferring to liquid nitrogen. Organoid cryovials were thawed rapidly in a 37ºC water bath, and organoids were diluted in pre-warmed adDMEM+ supplemented with ROCK inhibitor (final concentration = 10 μM). After centrifugation at 300 rcf for 5 min at 4ºC, the supernatant was removed, and the pellet of thawed organoids was plated as described above.

Chemical perturbation: For hormone interventions, β-estradiol was removed at day 5 from Type 2 medium and DMSO (Sigma, #D2650; final concentration = 0.1%) or 4-hydroxytamoxifen (Sigma, #H7904; final concentration = 200 nM or 3 μM where indicated) was added. The fresh Type 2 medium ± drug was exchanged on days 7, 10, and 12. For nutraceutical treatment, 10 μM sulforaphane (Sigma, #S4441) was added on day 7 with medium exchange on day 10.

Phenotyping: Brightfield images were scored for any evidence of plastic attachment or organoid death on each day of culture. For hematoxylin–eosin staining, organoid drops were scraped into a microcentrifuge tube precoated with D-BSA and washed with PBS before digesting the matrigel with three volumes of cell recovery solution (Corning, #354253) followed by incubation on ice for 30 min. Recovered organoids were diluted in PBS, pelleted by centrifugation (300 rcf for 5 min), and fixed with 4% paraformaldehyde in PBS for 10 min at room temperature. Fixation was quenched by an equal volume of D-BSA followed by gentle pipetting, centrifugation (300 rcf for 5 min), and two washes with PBS. Fixed organoids were embedded in 2% agarose, and the agarose plug was transferred to a cassette and stored in 70% ethanol before standard paraffin embedding, 5-µm sectioning, and hematoxylin–eosin staining by the UVA Research Histology Core. Brightfield histology images were acquired on an Olympus CKX41 inverted microscope with a 20×/0.4 NA long working-distance achromat objective and a qColor3 camera (Q-Imaging). For viability staining, organoid cultures at the 14-day endpoint were incubated with DAPI (Invitrogen, #D1306; final concentration = 0.1 μg/ml) and NucView (Sigma, #SCT100; final concentration = 5 μM) in DPBS (Gibco, #14190144) for one hour in 4ºC, and fluorescence images were digitally acquired on an EVOS M7000 (ThermoFisher, AMF7000) with DiamondScope software (version 2.0.2094.0). The total counts of EGFP and/or TdTomato positive organoids were collected by digital image acquisition on an EVOS M7000 (ThermoFisher, AMF7000) with DiamondScope software (version 2.0.2094.0) and combined with segmented estimates of overall organoid size.

Cell culture

MCF7 (ATCC, #HTB-22) were cultured in EMEM (ATCC, #30-2003) supplemented with 10% FBS, 1% penicillin–streptomycin, and 10 µg/ml insulin (Gibco, #12585014). T47D (ATCC, #HTB-133) were cultured in RPMI-1640 (ATCC, #30-2001) supplemented with 10% FBS, 1% penicillin–streptomycin, and 0.2 Units/ml insulin. CAMA1 (ATCC, #HTB-21) were cultured in EMEM supplemented with 10% FBS and 1% penicillin–streptomycin. EFM19 (DSMZ, #ACC231) were cultured in RPMI-1640 supplemented with 10% heat-inactivated FBS and 1% penicillin–streptomycin. HCC1500 (ATCC, #CRL-2329) were cultured in RPMI-1640 supplemented with 10% FBS and 1% penicillin–streptomycin. ZR-75–1 (ATCC, #CRL-1500) were cultured in RPMI-1640 supplemented with 10% FBS and 1% penicillin–streptomycin. MCF10A-5E [15] were cultured in DMEM/F12 (Gibco, #11330-032) supplemented with 5% horse serum (Gibco, #16050122), 20 ng/ml EGF (Peprotech, #AF-100-15), 500 ng/ml hydrocortisone (Sigma, #H0888), 100 ng/ml cholera toxin (Sigma, #C8052), 10 µg/ml insulin (Sigma, #I1882), 1% penicillin–streptomycin. HEK293 cells stably expressing murine Noggin (obtained from J. Brugge with permission from H. Clevers) were cultured in DMEM GlutaMAX, 10% FBS, 1% penicillin–streptomycin, and G418 (Sigma, #A1720; final concentration = 500 µg/ml). HEK293T cells stably expressing murine R-Spondin 1 (R&D Systems, #3710-001-01) were cultured in DMEM GlutaMAX, 10% FBS, 1% penicillin–streptomycin, and zeocin (Gibco, #R25001; final concentration = 300 µg/ml). L cells stably expressing murine Wnt3a (obtained from J. Brugge with permission from H. Clevers) were cultured in DMEM GlutaMAX, 10% FBS, 1% penicillin–streptomycin, and zeocin (final concentration = 125 µg/ml). Cells were grown and passaged according to ATCC or DSMZ guidelines. Cell images were digitally acquired on an EVOS M7000 (ThermoFisher, AMF7000) with DiamondScope software (version 2.0.2094.0).

Organoid growth measurement

Organoid images were digitally acquired every 2–3 days with a 2×/0.08 NA long working-distance plan apochromat objective on an EVOS M7000 (ThermoFisher, AMF7000) with DiamondScope software (version 2.0.2094.0) and analyzed with OrganoSeg [16]. The image sets were segmented using the following parameters: no out-of-focus correction, intensity threshold = 0.5, window size = 80, and size threshold = 150 (except for UVABCO61 where size threshold = 300). Area measurements were exported as an .xls file and further analyzed as described below for each experiment.

RNA isolation and RT-qPCR

RNA from primary tumors, organoids, 2D cultures, and cell lines was isolated with TRIzol reagent (Life Technologies, #15596018) followed by purification with the Direct-zol RNA MicroPrep Kit including DNase treatment (Zymo Research, #R2062). For organoids, matrigel was removed by TrypLE digestion before cell lysis. 25 ng of RNA was reverse transcribed with 250 ng oligo(dT) (Invitrogen, #18418012), 25 pmol random hexamer (Invitrogen, #N8080127), and 200 units of Superscript III (Invitrogen, #18080044). Specific transcripts were measured by quantitative PCR using 1.3 µl cDNA template (1.67 ng of original RNA per reaction) and 3.75 pmol each of forward and reverse primers together with a homemade master mix used at a final concentration of 10 mM Tris–HCl (pH 8.3), 50 mM KCl, 4 mM MgCl₂, 200 µM each of dATP, dCTP, dGTP and dTTP, 150 µg/ml BSA, 5% glycerol, 0.25× SYBR green (Invitrogen, #S7563), and 0.025 U/ml Taq polymerase (NEB, #M0267) in a final reaction volume of 15 µl and published thermal cycling parameters [17]. Gene abundances were calibrated against purified amplicons and normalized to B2M as a housekeeping gene. Primer sequences are listed in Additional file 1: Table S1C.

RNA-seq

Sequencing and pre-processing: RNA-seq was performed by the Genome Sciences Laboratory at the Center for Public Health Genomics with 50–550 ng total RNA (TruSeq Stranded Total RNA Library Prep, Illumina, #20020596) on an Illumina NextSeq instrument (500/550 High Output Kit v2.5 (150 Cycles), #20024907). RNA-seq data were aligned to the human assembly GRCh38.86 and quantified with STAR v2.5 [18]. Gene counts were batch corrected with ComBat_seq [19] taking each patient as a batch.

Principal components analysis: Gene counts were normalized as transcripts per million after excluding mitochondrial genes, and the 250 highest-variance genes were analyzed by principal components analysis in MATLAB R2023a after log₂ + 1 transformation and variance scaling without centering.

Cell type deconvolution: CIBERSORTx [20] was used to infer fractions and expression profiles of different cell types in each sample. A signature matrix was built from scRNA-seq data of human breast cancers [21] analyzed with Seurat v5 [22]. After clustering, cell clusters not assigned to B cells, T cells, NK:B clusters, macrophages (MΦs)/dendritic cells (DCs), adipocytes, stroma, endothelial cells, muscle cells, luminal cells, or basal cells were discarded. Data were downsampled to contain no more than 2000 cells per cell type before using CIBERSORTx to create the signature matrix and gene expression profile (GEP) file. The signature matrix was used with the bulk RNA-seq data to infer cell fractions. For differential expression analysis, the signature matrix and GEP file were used to infer mean expression and standard error for tumor scrapes, zero-passage organoids, 2D cultured cells, and cell lines for grouped basal and luminal cells (these two were relabeled as “LuminalBasal” and other classes were relabeled as “NotLuminalBasal” as an optional classes file for CIBERSORTx). To calculate the proliferation index in every sample, CIBERSORTx was used in high-resolution mode with the same signature matrix, GEP file, and classes file.

Proliferative status: A proliferation index was calculated as in [23] with a combination of 157 genes correlated with cell proliferation rates. 32 out of 157 genes were not inferable by CIBERSORTx and thus assigned a constant estimate in the calculation.

Gene set enrichment analysis: To assess hallmark pathways, gene set enrichment analysis was performed using the fgsea R package [24] on fold change ranking of differentially expressed genes for the combined basal–luminal expression profiles inferred by CIBERSORTx in GEP mode.

DNA isolation and genotyping

Genomic DNA for CRISPR/Cas9 genotyping was isolated from cell lines and organoids by using Quick Extract DNA Extraction Solution (Lucigen, #QE09050). For organoids, matrigel was removed by TrypLE digestion before DNA isolation. Single organoids were hand-picked with capillary pipet tips and examined for locus deletion by PCR using MyTaq Red Mix (Bioline, #BIO-25043) and the following cycling parameters: 95°C for 1 min, 45 cycles of 95°C for 15 s, 60°C for 20 s, 72°C for 30 s, followed by 72°C for 5 min. Oligonucleotides sequences are listed in Additional file 1: Table S1B.

Lentiviral transduction

Packaging: Preparation of lentiviruses by CaPO₄ precipitation was less efficient for pDual vectors and not compatible with alternative base media. Therefore, we used lipofection (Lipofectamine 3000, #L3000001) of HEK293T cells to package psPAX2 (Addgene, #12260), pMD2.G (Addgene, #12259), and pDual_dsCas9_Venus/BFP/Puro/Blast with different sgRNA combinations or pLX302 EGFP-V5 puro (Addgene, #141348) and pLX302 TdTomato-V5 puro (Addgene, recombined from #82404). For organoid transduction, virus was prepared in high-glucose DMEM supplemented with 10% FBS and 1% penicillin–streptomycin. Virus was collected at 48 h, passed through a 0.45-µm filter, concentrated with Lenti-X™ Concentrator (Takara, #631231), and resuspended in 1/10th volume of fresh Type 2 medium [12]. For unconcentrated transduction of cell lines, pDual lentivirus was prepared in the culture medium recommended for the transduced cell line.

Primary cell transduction: Breast cancer organoids were first transduced during organoid initiation after erythrocyte lysis. Cells were incubated with 10× concentrated virus in Type 2 medium for 1 h at 37°C with shaking as described for collagenase treatment before, after which the initiation protocol was continued. Second, upon matrigel solidification, 100 μl of 10× concentrated virus (98,000–145,000 fluorescence-forming units) in Type 2 medium was added to the well (instead of unconditioned Type 2 medium) for 72 h along with polybrene (Sigma, #H9268; final concentration = 8 µg/ml). After transduction with pDual_dsCas9_Venus, Shield-1 ligand (Aobious, #AOB1848; final concentration = 200 nM) was added at day 0, replenished during refeeding at days 3 and 5, and removed upon refeeding at day 7.

Cell line transduction: MCF7 (6 × 10⁵ cells/well) and T47D (5 × 10⁵ cells/well) were seeded in a 6-well plate for 24 h and then 1× virus in the recommended culture medium was added with polybrene (8 µg/ml) and Shield-1 ligand (200 nM) for 72 h. After transduction, pDual_dsCas9_Venus/BFP cells were sorted for Venus or BFP on an Influx Cell Sorter, and pDual_dsCas9_Puro/Blast cells were selected in puromycin (MP Biochemicals, #100552; final concentration = 2 µg/ml) or blasticidin (Gibco, #R21001; final concentration = 10 µg/ml) until control plates had cleared.

Immunoblotting

Total protein from the cultures was extracted with radioimmunoprecipitation assay buffer (50 mM Tris–HCl (pH 7.5), 150 mM NaCl, 1% Triton X-100, 0.5% sodium deoxycholate, 0.1% sodium dodecyl sulfate, 5 mM EDTA supplemented with 10 µg/ml aprotinin, 10 µg/ml leupeptin, 1 µg/ml pepstatin, 1 mM phenylmethylsulfonyl fluoride, 1 µg/ml microcystin-LR, and 200 mM sodium orthovanadate), separated on 10% polyacrylamide gels, transferred to polyvinylidene difluoride membranes, blocked with 1× Odyssey blocking solution (LI-COR, #927-70001) for 1 h, probed overnight with primary antibodies followed by IRDye-conjugated secondary antibodies for 1 h, and scanned on a LI-COR Odyssey instrument with Odyssey software (version 3.0) as previously described [25]. Primary antibodies recognizing the following antigens were used at the indicated dilutions: p73 (Abcam, #ab40658; 1:500), HSP 90ɑ/β (Santa Cruz Biotechnology, sc-13119; 1:1000). Secondary antibodies were used at the indicated dilutions: goat anti-rabbit (LI-COR, #926-68071; 1:20,000) and donkey anti-mouse (LI-COR, #926-32212; 1:20,000).

Statistical analysis

Proportional hazards modeling: Cox proportional hazards modeling was used to investigate the association between the success of organoid culture and the available deidentified patient data. The survival R package was used for multivariate Cox regression analysis and the survminer R package was used to generate the forest plot for culture success in RStudio (version 2023.06.2) and R (version 4.2.1). If tumor grade or estimated size were missing, those values were inferred based on the mean of the rest of the samples. If ESR1 and PGR percentages were annotated as above a specific percentage, 0.5% was added to the named number (for example > 95% was analyzed as 95.5%). Plastic attachment and death events were analyzed by a Cox proportional hazards model of scores collected on days 2–14 with right censoring used to indicate samples without events on day 14. The model considered organoid source (n = 12 patients) and culture volume (2 µl or 5 µl) as independent categorical variables.

Multiway ANOVA: Cross-sectional area measurements were shifted by subtracting the size threshold used for image segmentation, adding a size offset of 10 pixels², and log transforming to achieve a normal distribution. The anovan function in MATLAB (version R2023a) was used on the shifted log-transformed areas to track the fixed effects of patient, culture day, culture volume (nested within patient), and technical replicate (nested within volume) on the shifted log transformed area. Pairwise interactions between factors were included, and type 3 sum of squares residuals were assessed after considering main effects and interaction terms. The volumes were analyzed together and as pairs, which were Šidák-corrected for multiple-hypothesis testing.

Organoid growth modeling: We began with an equation for exponential volumetric growth defined by a characteristic volumetric growth rate: $V(t)={V}_{0}\text{exp}\left(kt\right)$, where V(t) describes the change in volume over time, V₀ is the volume at t = 0, and k is the volumetric growth rate in days⁻¹. For a spherical organoid, volume ($V=\frac{4}{3}\pi {R}^{3}$) and cross-sectional area ($A=\pi {R}^{2}$) are proportionally related: $A(t) \sim {V(t)}^{2/3}$. Therefore: $A(t)={A}_{0}\text{exp}\left(\frac{2}{3}kt\right)$, where A₀ is the cross-sectional area at t = 0. Mean cross-sectional areas (calculated after shifted log transformation) per time point and condition for each patient were regressed against A(t) by non-linear least-squares with the lsqcurvefit function in MATLAB. The data were fit globally to constrain a single estimate of A₀ across common genotypes. For the hormone-intervention study, all conditions shared the same A₀ because the perturbations did not begin until t = 5 days. For the nutraceutical study, the control, dual-sgChr1, and dual-sgNQO1 organoids were each fit with their own A₀ because transductions began at t = 0 days. Confidence intervals were estimated by support plane analysis, whereby either A₀ or k was displaced from its best fit, the remaining parameters were re-estimated, and the decrease in model quality was assessed by F test of the residuals scaled by the degrees of freedom as defined by the total number of organoids in a patient.

Results

Reconfigured gross processing of breast tumor resections

Breast lumpectomies are typically placed in formalin right after excision in the operating room or upon arrival to surgical pathology (Fig. 1A, solid black to orange). There are alternatives for preserving viable cells, but the amount of material requires patient consent and pre-defined eligibility criteria, which encumbers daily clinical practice. In pursuit of more flexibility, we hastened the first step by transferring fresh material to pathology within 30 min (Fig. 1A, dashed black). The delay is negligible with respect to immediate fixation because formalin penetrates less than 0.5 mm into the bulk tumor over this time [26]. During gross processing, cross-sections of the tumor are scraped with a razor and dabbed onto uncharged microscope slides before they are placed in formalin (Fig. 1A, dashed orange and Additional file 2: Video 1). The additional step does not divert any bulk material from pathology, allowing these tumor scrapes to be considered as medical waste. Tumor scrapes are compatible with most biochemical and immunocytochemical methods (Fig. 1A, blue). Importantly, they yield as many as several thousand viable carcinoma cells, which can be isolated off the slides and cultured as organoids according to protocols for tumor pieces [12, 13]. Eligibility to proceed with organoid culture is dictated by the overall cellularity of the scrape, which cannot be defined preoperatively. Therefore, our Institutional Review Board has granted this study a waiver of consent under 45CFR46.116 of the 2018 Common Rule. Together, the coordinated reordering of steps between surgeons, scientists, and pathologists enabled many fresh luminal breast cancers to be tested for organoid growth and survival.

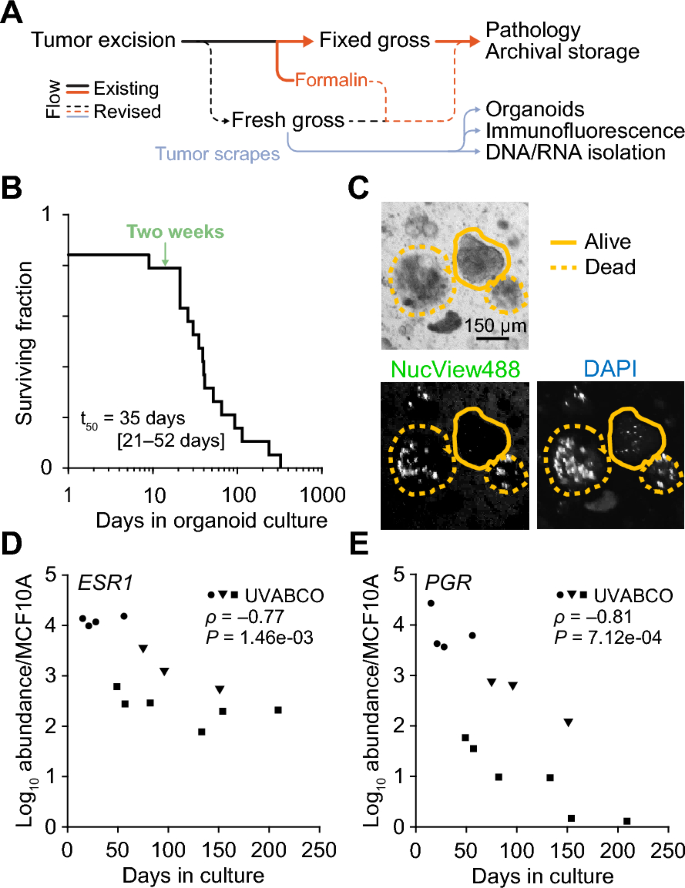

Fig. 1

Loss of viability and hormone receptor expression in organoids isolated from tumor scrapes. A Schematic detailing the standard gross processing of surgically resected tumors (solid black-to-orange line) alongside changes (dashed lines) that incorporate tumor scrapes (blue line). The addition of formalin is in orange. B Kaplan–Meier survival analysis of luminal breast cancer organoids generated from tumor scrapes (n = 19 independent luminal breast cancers). The median survival time (t₅₀) is shown with the 95% confidence interval in parentheses, and the two-week time point is annotated (green). C Live-cell NucView® 488 Caspase-3 and DAPI staining of live (solid line) and apoptotic (dashed line) organoids. Scale bar is 150 µm. D and E RT-qPCR of ESR1 and PGR expression in organoids from three patients (UVABCO92, circles; UVABCO1, squares; UVABCO5, triangles) at different passages over time. Relative transcript abundance is normalized to MCF10A-5E as a basal control

Prolonged culture of luminal tumor organoids causes death and loss of hormone receptors

Breast tumors of the luminal A subtype are less proliferative and much more prevalent than luminal B tumors [27]. Luminal tumors are also often wild-type for TP53 [28] and therefore remain poised to undergo apoptosis. Accordingly, despite ~80% success in initiating luminal breast cancer organoids from tumor scrapes (n = 20 cases), we found that the replicative life span of primary tumors was limited. The median survival time was 35 days, and none of the cultures lasted more than one year (Fig. 1B). When terminal cultures were stained with a caspase activity reporter and a viability dye, we found that most organoids died by apoptosis (Fig. 1C). Organoid culture supports proliferation of luminal cancer cells but not their indefinite maintenance.

A defining characteristic of luminal breast cancers is expression of the hormone receptors, ESR1 and PGR, which often disappear when luminal cells are cultured on tissue-culture plastic [29, 30]. Using three cultures that persisted for at least two months, we tracked hormone-receptor transcript abundance over multiple organoid passages. Consistent with recent work [12, 31], ESR1 and PGR repeatedly declined with time in culture even as cells remained viable (Fig. 1D, E). The drift may reflect hormone receptor silencing in the luminal cancer or outcompetition by a subpopulation of hormone-negative cells [30, 32]; regardless, the results indicate that luminal tumor organoids deviate rapidly from the primary tumor.

Zero-passage organoids preserve luminal characteristics of primary tumors

The surviving fraction of luminal cases was stable for the first three weeks (Fig. 1B) before most organoids needed to be dissociated and split to reduce cell density [12]. We thus pursued an accelerated format with a pre-designated endpoint of 14 days, when organoid histopathology was consistent with the originating luminal tumors (Additional file 3: Fig. S1). The intent of this “zero-passage” approach was to capture a few culture-induced cell doublings in response to perturbations of interest while hopefully minimizing drift of the luminal state.

We tested this premise by initiating a second set of organoids (n = 18) and quantifying ESR1 and PGR abundance relative to the originating tumor scrape (Fig. 2A, B). Six luminal breast cancer lines and one nontransformed basal line (MCF10A) were included as positive and negative controls respectively for each hormone receptor in the quantitative PCR. From six scrapes, we successfully maintained cells for 14 days as a monolayer on tissue-culture plastic with organoid culture medium. These organoid-paired samples distinguish the contribution of i) extracellular matrix ligands in matrigel, ii) the compliance of matrigel, and iii) the microenvironment effects of cell encapsulation to the molecular profiles observed. Although decreases in both hormone receptors were often measured relative to the corresponding tumor scrape, zero-passage organoids retained hormone receptor expression within the clinical range measured across patients: 21–1000-fold above MCF10A for ESR1 and 20–8700-fold above MCF10A for PGR (Fig. 2A, B; yellow). Importantly, monolayer-cultured cells (2D) had significantly lower ESR1 and PGR abundance compared to zero-passage organoids derived from the same tumor scrape (Fig. 2A, B; blue). Recognizing that hormone receptor abundance would continue to decline past 14 days (Fig. 1D, E), these results supported zero-passage organoids for short-term examination of most luminal breast cancers.

Fig. 2

Zero-passage organoids preserve short-term hormone receptor expression and reduce trans-differentiation of luminal breast cancer cells. A and B Comparison of ESR1 and PGR expression in originating tumor scrapes, zero-passage organoids, and 2D cultured cells relative to a basal control (MCF10A-5E; pink) and luminal breast cancer cell lines (MCF7, T47D, HCC1500, CAMA1, EFM19, and ZR-75–1). Shaded boxes indicate the observed range of expression among patients. Paired samples are connected with black lines. Blue highlights paired samples of tumor scrape, 2D culture, and zero-passage organoids (n = 4 independent luminal breast cancers). Paired 2D and organoid cultures were compared for ESR1 and PGR abundance by paired t test after log transformation. C. Downsampled scRNA-seq data of human breast cancers [21] used to define a CIBERSORTx signature matrix for bulk RNA-seq deconvolution [34]. D Gene-by-cell type signature matrix for deconvolving lineages in tumor scrapes, zero-passage organoids, and 2D cultures. E and F Comparison of luminal and basal lineage fractions in originating tumor scrapes, zero-passage organoids, and 2D cultured cells relative to luminal breast cancer cell lines (MCF7, T47D, HCC1500, CAMA1, EFM19, and ZR-75–1). Paired samples are connected with black lines. *P < 0.05 by paired one-sided t test after arcsine transformation of percentages

To evaluate cell states more comprehensively, we profiled the transcriptomes of six patients with paired tumor scrapes, zero-passage organoids, and 14-day 2D cultures (see Methods). Luminal breast cancer lines were included in the RNA-seq for reference as before. Unfortunately, no driver mutations were detected frequently enough at the transcript level to say definitively whether transformed cells were propagating in zero-passage organoid cultures. As an alternative, we used somatic passenger mutations in the large, highly expressed gene, NBPF10 [33]. Between tumor scrape and zero-passage organoid culture, the estimated expression frequency of NBPF10 mutants increased in 16/18 = 89% of cases (P = 7.3e-5 by sign-rank test; Additional file 3: Fig.S2), suggesting that luminal tumor cells reliably expand as zero-passage organoids.

For expression analysis, we anticipated that mixed cell lineages in the tumor scrapes would confound comparisons with the cultured cells. Therefore, we used downsampled single-cell RNA-seq data from human breast cancers [21] to define a signature matrix for bulk deconvolution of 10 major cell types by CIBERSORTx [34] (Fig. 2C, D and Additional file 1: Tables S2–S4). Tumor scrapes were predominantly luminal cells but contained detectable contributions from stromal cells, basal cells, endothelial cells, CD8+ T cells, macrophage–dendritic cells, and adipocytes (Additional file 3: Fig. S3). When the same approach was applied to ex vivo cultures, we found that proliferative signatures were comparable to the tumor scrape but significantly less than established cell lines (Additional file 3: Fig. S4). After 14 days, we found that zero-passage organoids generally retained the proportion of luminal cells, whereas 2D cultures did not (Fig. 2E). Both formats led to an increased percentage of basal cells, likely due to EGF in the culture medium [35, 36]. However, the change was more exaggerated in 2D cultures compared to zero-passage organoids (Fig. 2F), illustrating the importance of matrigel-related cues for retaining luminal identity.

As a final characterization, we performed differential-expression analysis on the CIBERSORTx-inferred epithelial transcriptomes of all samples (Additional file 1: Tables S5 and S6). In the analysis, basal and luminal lineages were combined because distinctions finer than epithelial–nonepithelial reduced the number of genes deconvolvable by CIBERSORTx. Focusing on the large gene expression changes (log₂ fold change ≥ 2, log₁₀ counts per million ≥ 1), we found 51 transcripts increased in zero-passage organoids compared to tumor scrapes and 410 transcripts decreased (FDR-corrected P < 0.05). Among the increases, we noted genes involved in Wnt–β-catenin regulation (FRZB, SFRP1), which likely related to feedback from Wnt3a in the Type 2 organoid medium [12]. There was also extensive upregulation of transcripts related to cholesterol metabolism (DHCR7, EBP, MVD, NPC2; Additional file 1: Table S7) and receptor tyrosine kinase signaling (EFNB2, KIT, MAPK4). Downregulated transcripts included many residual contaminants of non-epithelial genes incompletely resolved by CIBERSORTx (HAVCR2, FCGR2B, PECAM1, and others; Additional file 1: Table S7). However, decreases tied to X inactivation (XIST, FTX) and innate immunity (TLR2, TLR4) were likely cell autonomous and suggest a degree of reprogramming induced by the organoid format.

We extended the differential-expression analysis to compare zero-passage organoids with 14-day 2D cultures. Upon relaxing the magnitude of change to log₂ fold change ≥ 1, we identified 29 upregulated and 46 downregulated transcripts. As expected, matrigel-embedded organoids increased genes involved in polarity and membrane dynamics (PARD6A, DOCK1, IQGAP2), whereas 2D cultures on tissue-culture plastic increased genes for adhesion and F-actin stabilization (ITGB1, LIMA1, COTL1). More surprising was the upregulation of transcripts for proteins secreted by luminal epithelial cells in zero-passage organoids (NUCB2, SCGB2A1). 2D cultures, by contrast, were increased for various atypical MAPK genes (MAP4K4, MAP3K20, MAPK6) warranting further study. A complete set of differential-expression analyses is provided in Additional file 1: Table S6 along with gene set enrichment analyses in Additional file 1: Table S7.

Clinical predictors of zero-passage organoid culture success

We assembled a cohort of 90 luminal breast cancers (Table 1) to determine if any pre-surgical characteristics predicted organoid culture success. Proportional hazard modeling detected enhanced success from cases with higher-grade tumor biopsies (P < 0.001; Fig. 3) and higher-grade surgical resections (P = 0.045; Additional file 3: Fig. S5). Cases obtained by mastectomy were also more successful compared to lumpectomy specimens (P = 0.001; Fig. 3 and Additional file 3: Fig. S5), which is counterintuitive given that mastectomy surgery times are often longer. Surgery-associated ischemia may trigger adaptive stress pathways that allow tumor cells to withstand the microenvironment change of organoid culture, or the surrounding normal tissue may buffer cellular stresses immediately after surgery. We detected no impact of age, race, carcinoma type, hormone receptor expression, estimated tumor size, surgeon, pathologist, or culturist on organoid success (Fig. 3 and Additional file 3: Fig. S6). These results help inform power analyses of future studies that apply zero-passage organoids to specific luminal cohorts.

Table 1 Patient demographic and clinical characteristics

Fig. 3

Pre-surgical characteristics and their association with organoid failure risk by day 14. Cox proportional hazards model for n = 72 luminal breast cancers showing hazard ratios with confidence interval (CI). Significant factors are blue. Tumor grade at biopsy was missing for one of the specimens, and five specimens were missing the estimated size (see Methods)

Multiplexed zero-passage organoids by miniaturization

One tradeoff of the zero-passage approach is that all perturbations and controls must occur without appreciably expanding organoids from the tumor scrape. It was thus critical to shrink the culture volume as much as possible to allow multiple replicates and carefully assess the well-to-well variability of technical replicates. Prior studies did not describe culture volumes of matrigel less than 10–20 µl [12], prompting us to test reduced volumes of 7, 5, and 2 µl (n = 6 independent cases). We monitored growth of the organoid population longitudinally by serial brightfield imaging at six time points over 14 days, followed by digital image segmentation [16] and multiway ANOVA applied to the resulting distributions of organoid size (estimated by cross-sectional area). The ANOVA tracked fixed effects (patient, culture day, culture volume, and technical replicate), nesting (replicates within volume and volumes within patient), and pairwise interactions between factors [37]. Because post-hoc comparisons are challenging in multiway settings [38], we considered the volumes together and as individual pairs after correcting for multiple-hypothesis testing (Fig. 4A; see Methods). The analysis assessed differences by volume while accounting for covariates intrinsic to the study.

Fig. 4

Reproducible miniaturization of organoid cultures to 5 µl without detectable growth deficits. A Multiway ANOVA table of P values for organoid size and the indicated fixed effects and interaction terms. Culture volumes (2 µl, 5 µl, and 7 µl) were considered together and in pairs (n = 2–6 factors or levels per effect). Specific illustrations of fixed effects are shown in subsequent subpanels. B Differences in organoid size distribution for four representative patient sources. 5 µl organoid cultures were measured for cross-sectional area by brightfield imaging on day 7. C Differences in organoid size distribution at 2, 5, 7, 10, 12 and 14 days. The 5 µl organoid culture was measured longitudinally as in (B). D Differences in organoid size distribution between 2 µl, 5 µl, and 7 µl cultures. The patient-derived sample was measured on day 7 as in (B). E Overlapping variance of downsampled technical replicates among organoid culture volumes. Organoid counts in the larger volumes of three patients were repeatedly downsampled to the 2 µl median (n = 1000 iterations; tan), and variance was estimated after shifted log transformation (see Methods). Variance estimates of the entire organoid count from each volume and technical replicate are overlaid (black). See Additional file 3: Fig. S9 for analysis of additional patients. For (B–D), size distributions are summarized by their cumulative distribution function

Among factors, patient, day of culture, and the patient × day interaction were highly significant, reflecting inter-tumor differences in growth and the increases in organoid size over two weeks (Fig. 4A–C). Culture volume was detected as a significant factor when all volumes were analyzed or when 2 µl was compared to 5 µl or 7 µl separately (Fig. 4A). We also observed suggestive increases in organoid death and attachment to tissue-culture plastic at the periphery of the matrigel droplet in 2 µl cultures (Additional file 3: Fig. S7). The contact angle of a 2 µl culture is likely too small to prepare a hanging drop [12], and sitting drops of this volume or less on low-attachment plates did not support zero-passage organoid growth (Additional file 3: Fig. S8). Notably, volume effects did not reach statistical significance when 5 µl and 7 µl cultures were compared, indicating negligible differences between these droplet sizes (Fig. 4D). For all culture volumes, variability among technical replicates was detectable but much less so compared to other factors (Fig. 4A). Volume-dependent replicate effects could not be estimated because of nesting. As a substitute, we downsampled organoid counts to the 2 µl median and inspected the distribution of 1000 iterations by patient, observing no consistent pattern with volume (Fig. 4E and Additional file 3: Fig. S9). These results support miniaturization of organoid cultures down to 5 µl, doubling to quadrupling the number of replicates that can be generated from the limited material of a tumor scrape. Successful isolations yielded about 12 separate 5 µl drops (median; interquartile range: 6–29) for parallel testing.

Zero-passage luminal breast cancer organoids exhibit patient-specific sensitivity to hormone interventions

One intended use of zero-passage organoids is for gauging the importance of hormone receptor signaling across different luminal breast cancers. Organoids are cultured in 100 nM β-estradiol [12] and phenol red in the medium confers weak estrogen-like activity [39]. We thus designed a small panel of hormone interventions by withdrawing β-estradiol from the culture medium (to mimic aromatase inhibition that occurs when women take oral aromatase inhibitors in the adjuvant setting) and supplementing with progressive concentrations of 4-hydroxytamoxifen (4-HT) to block residual signaling. Before interventions, we cultured organoids for four days in 100 nM β-estradiol to disentangle growth from confounding effects on organoid initiation. The four-day preculture enabled formulation of a growth model linking volumetric growth rates to organoid cross-sectional areas based on an initial size at t = 0 days shared by all interventions (see Methods).

For six organoid preparations derived from five patients, we quantified a ~fivefold range of volumetric growth rates (Fig. 5A–F), which were robust when resampled to account for differences in organoid number (Additional file 3: Fig. S10). Some cases appeared completely insensitive to 4-HT (Fig. 5A, F) or only showed responses at the higher dose (Fig. 5B–D). We also identified instances of accelerated growth when β-estradiol was withdrawn (Fig. 5C–F), a possible reflection of the tumor “flares” reported clinically upon treatment with aromatase inhibitor [40, 41] or inhibitory effects of β-estradiol on breast cancer cell proliferation [42, 43]. In one patient with luminal breast cancers coming from each breast, we quantified a ~twofold difference in growth rate between the tumors but the same pattern of responsiveness to β-estradiol withdrawal and 4-HT (Fig. 5C, D). Importantly, the effects of β-estradiol removal and 4-HT treatment were separable: UVABCO93 was affected by removal of β-estradiol but not 4-HT (Fig. 5F), whereas the growth rate of UVABCO85 was altered only by the higher dose of 4-HT (Fig. 5B). Interestingly, for three cases that were phenotypically resistant to low-dose 4-HT and profiled by RNA-seq, we noted similar transcriptome-wide changes from their respective uninhibited controls (Additional file 1: Table S8 and Additional file 3: Fig. S11). These results indicate that the zero-passage timeline is sufficient to distinguish patient-specific differences in luminal cancer cell growth among alternative treatment regimens tested in parallel.

Fig. 5

Patient-specific sensitivity of zero-passage organoids to hormone withdrawal and tamoxifen treatment A–F Upper panels show mean organoid area at six time points after shifted log transformation (n = 22–1407 organoids per patient, time point, and condition; see Methods) for control cultures (gray), cultures with β-estradiol withdrawn (β-est; black), and cultures with β-est withdrawn plus 200 nM 4-hydroxytamoxifen (4-HT; yellow) or 3 µM 4-HT (orange) on day 5. Overlaid are non-linear least-squares curve fits for area growth as a function of volumetric growth rate. Pathologic estimates of positivity for estrogen receptor (ESR1) and progesterone receptor (PGR) are reported as cellular percentages in the inset. Lower panels summarize the best-fit per-day (d⁻¹) volumetric growth rate for each condition with 90% confidence intervals estimated by support plane analysis. *P < 0.05 after Bonferroni correction for multiple-hypothesis testing

The breadth of responsiveness raised a more general question about biological reproducibility of zero-passage organoids. Technical replicates from the same organoid preparation may be self-consistent (Fig. 4E), but tumor scrapes might not yield enough cells to capture the overall tumor response reliably. We addressed this concern by collecting scrapes separately from the same tumor and processing them independently thereafter. For a lumpectomy case (UVABCO118), three serial scrapes yielded highly consistent volumetric growth rates of ~0.1 day⁻¹, and all increased significantly when β-estradiol was withdrawn (Additional file 3: Fig. S12A–C). For a mastectomy case (UVABCO116), we separated two scrape collections by several millimeters of macrodissected tumor (Additional file 2: Video 1). The spatially distinct samples differed considerably in their volumetric growth rates, but both increased when β-estradiol was withdrawn and decreased significantly with high-dose 4-HT (Additional file 3: Fig. S12D, E). These data suggest that zero-passage organoids capture tumor-intrinsic responsiveness to hormone interventions.

Highly efficient lentiviral transduction of luminal breast cancer organoids

To inform luminal cancer biology, zero-passage organoids must also be compatible with genetic manipulations. Luminal breast epithelial cells are difficult to transfect or transduce efficiently without additional steps (electroporation, enzyme treatments) that could stress freshly isolated cells [12, 44]. We achieved high transduction efficiency by resuspending pellets of standard lentiviral preparations in 1/10th volume of organoid growth medium, then incubating cells with virus for one hour before matrigel embedding and during the first three days of organoid culture (see Methods). Using this procedure with a mixture of EGFP- and TdTomato-encoding lentiviruses, we found that most organoids contained cells expressing one or more fluorophores (Fig. 6A, B). Importantly, transduction did not detectably affect organoid growth compared to paired untransduced controls or fluorescence-negative organoids within the same culture (P = 0.22; Fig. 6B). These results indicated that the lentiviral transduction protocol was gentle and effective enough to omit antibiotic selection [12], which if used would delay the zero-passage approach past two weeks.

Fig. 6

Zero-passage organoid compatibility with lentiviral transduction and genetic modification. A Representative image of one organoid transduced with a mixture of lentiviruses encoding EGFP (green) and TdTomato (magenta). Scale bar is 50 µm. B Quantification of organoids containing cells expressing one or more fluorophores. Percent fluorescence positive ( +) is reported as the mean ± standard deviation from n = 4 independent luminal breast cancers. Differences in organoid sizes were assessed by two-way ANOVA (n = 11–27 organoids per group). C Map of the pDual_dsCas9_Venus lentiviral plasmid encoding destabilized Cas9 fused by a P2A sequence with Venus. Cloning sites for coexpressed dual-sgRNAs are indicated. D Harvesting single Venus-positive organoids for genotyping. Fluorescent organoids confirmed by epifluorescence (top right) are harvested by micropipette aspiration (before: bottom left; after: bottom right). Scale bars are 50 µm (top) and 250 µm (bottom). E and F Single-organoid genotyping of zero-passage cultures transduced with pDual_dsCas9_Venus targeting a noncoding region of human chromosome 1 (E) or chromosome 2 (F). The first lane is a PCR negative control (no genomic DNA), the second lane is a nontargeting control (single organoid transduced with empty pDual_dsCas9_Venus), and the subsequent three lanes are single organoids transduced with dual-sgRNAs. DNA markers are on the left and PCR band sizes for wild-type and knockout amplicons are on the right. Relative efficacy of targeting is indicated on the bottom of the gel

Loss-of-function testing with CRISPR-Cas9 in organoids normally requires selection and clonal isolation of knockouts [12, 45, 46], which is problematic for retaining luminal identity (Fig. 1D, E). The sustained expression of Cas9 was also concerning as it activates the TP53 pathway and selects for inactivating mutations even without sgRNA-targeted double-strand breaks [47]. TP53 mutations naturally occur in less than 30% of luminal breast cancers [28], raising the possibility of artifacts. We thus pursued a regulatable approach that modified an existing one-plasmid, destabilized Cas9-P2A-Venus system [48] to include a second sgRNA (Fig. 6C). Destabilization is achieved by fusing an FKBP12 mutant to the N terminus, which targets Cas9 for degradation unless the FKBP12-binding ligand Shield-1 is added. Transient Cas9 stabilization with Shield-1 should minimize off-target effects, and we reasoned that dual-sgRNAs—one targeting a critical exon and the other targeting a nearby intron—would result in more knockouts by the combined probability of indels, inverted reinsertions, and segmental deletions [49,50,51]. The P2A-linked reporter was also expanded by replacing Venus with mTagBFP2, puromycin resistance, or blasticidin resistance to create the pDual_dsCas9 series of lentivectors (see Methods). The collective modifications negligibly increased the final cloned sequence between the long terminal repeats (LTRs, Fig. 6C), and lentivirus of sufficiently high titer was produced when packaging by lipofection and concentrating as before (see Methods).

To control for the effect of double-strand breaks, we cloned dual-sgRNAs for non-coding regions of chromosome 1 or 2 that are considered safe targets [52] (see Methods). After transduction of zero-passage organoids and short-term Cas9 stabilization for 7 days, we detected Venus-positive organoids that were harvested by micropipette aspiration (Fig. 6D). Genotyping of single-organoid aspirates indicated a spectrum of segmental deletions that varied by organoid and dual-sgRNA control (Fig. 6E, F). Given that such genotyping overlooks small indels and inversions, we targeted a coding gene in luminal breast cancer lines as a proof of concept: the TP53 family member, TP73. The long variant of TP73 contains a transactivation (TA) domain with tumor-suppressive functions that can substitute for TP53 deficiency in breast cancer lines [53, 54]. TP73 transcript abundance also exhibits high intratumor heterogeneity in many primary luminal breast cancers [55]. We designed dual-sgRNAs flanking the entire TA domain of TP73 (Additional file 3: Fig. S13A) and transduced luminal breast cancer lines that were TP53 proficient (MCF7) or deficient (T47D). Non-concentrated pDual_dsCas9 lentivirus readily transduced cultured cells and achieved considerable TP73 segmental deletions in selected (or sorted) pools of clones (Additional file 3: Fig. S13B, C). To estimate the combined proportion of segmental deletions and smaller indels, we immunoblotted the polyclonal samples and quantified at least a twofold reduction in TP73 protein regardless of the P2A-linked reporter (Additional file 3 : Fig. S13D). We conclude that the pDual_dsCas9 lentivector series is an appropriate tool for genetically modifying organoids within a zero-passage time frame.

Combinatorial phenotyping of genetic depletion and small-molecule treatment in zero-passage organoids

Zero-passage organoids can test mechanisms of action by combining genetic and small-molecule perturbations. As an illustration, we pursued one gene widely implicated in resistance to anti-cancer therapies: the NAD(P)H quinone dehydrogenase 1, NQO1 [56, 57]. As part of the phase II antioxidant response, NQO1 is heterogeneously upregulated in luminal breast cancers [55, 58]. The most potent chemical inducer of NQO1 is sulforaphane, an electrophile and nutraceutical that has been tested as an antiproliferative agent for breast premalignancies (NCT00982319). Sulforaphane acts by inhibiting a specific ubiquitin ligase for the transcription factor, NFE2L2 [59,60,61]. Sulforaphane indirectly stabilizes NFE2L2 and inhibits proliferation of breast cancer cell lines in culture [62]. However, NQO1 promotes tumor growth in vivo through downstream effects on hypoxia sensing that are also relevant to large (> 200 µm) organoids [63, 64]. Given that sulforaphane-stabilized NFE2L2 upregulates many genes in addition to NQO1 [65], we sought to ascertain the contribution of NQO1 to sulforaphane-induced responses in zero-passage organoids.

We disrupted NQO1 by designing dual-sgRNAs flanking exon 2 and most of exon 3 upstream of its substrate-binding domain (Fig. 7A) and transducing seven independent luminal cases in parallel with safe-targeting controls. Cas9 was stabilized in zero-passage organoids for the first seven days, and different extents of segmental deletion were confirmed in single organoids (Fig. 6E, F and Fig. 7B). After seven days, half of the replicates were treated with sulforaphane at a clinically-attainable concentration of 10 µM [66] and parallel cultures monitored for another seven days. Because viral transductions began at t = 0 days, we expanded the growth model to account for different starting points of each genotype and estimated volumetric growth rates globally (see Methods).

Fig. 7

Combinatorial NQO1 depletion and sulforaphane treatment of zero-passage organoids yields three classes of patient-specific responses. A Experiment design for targeting and detecting deletion of NQO1. Dual-sgRNAs targeting required exons are in orange and genotyping PCR primers are in blue. B Single organoid genotyping of zero-passage cultures transduced with pDual_dsCas9_Venus targeting NQO1 as in (A). The first lane is a PCR negative control (no genomic DNA), the second lane is a nontargeting control (single organoid transduced with empty pDual_dsCas9_Venus), and the subsequent three lanes are single organoids transduced with dual-sgRNAs. DNA markers are on the left and PCR band sizes for wild-type and knockout amplicons are on the right. Relative efficacy of targeting is indicated on the bottom of the gel. The rightmost lane was contrast-enhanced independently for better visibility of the bands due to low genomic DNA content. C–E Upper panels show mean organoid area at six time points after shifted log transformation (n = 17–1661 organoids per patient, time point, and condition; see Methods) for control cultures transduced with Cas9 only (gray), cultures with dual-sgRNAs (dsgRNAs) targeting a noncoding region of chromosome 1 (Chr1) targeted (black), and cultures with NQO1 targeted with dsgRNA (purple). Genotypes were treated with 10 µM sulforaphane (SF, yellow boxes) or 0.1% DMSO control. Overlaid are non-linear least-squares curve fits for growth as a function of volumetric growth rate and genotype. Lower panels summarize the best-fit per-day (d⁻¹) volumetric growth rate for each condition with 90% confidence intervals estimated by support plane analysis. *P < 0.05 after Bonferroni correction for multiple-hypothesis testing for the indicated pairwise comparisons. ^#P < 0.05 indicating both dsgNQO1 conditions are less than the corresponding dsgChr1 condition. The inset of the lower panel of (C) illustrates the potential relationships between sulforaphane (SF), the transcription factor NFE2L2, its target NQO1, and organoid growth. See Additional file 3: Fig. S14 for analysis of additional patients

We noted three classes of responses to NQO1 knockout ± sulforaphane treatment in zero-passage organoids. For three of seven cases, sulforaphane elicited growth inhibition that was reduced or lost upon NQO1 knockout (Fig. 7C and Additional file 3: Fig. S14A, B). In another three of seven cases, NQO1 knockout was enough to accelerate organoids growth (Fig. 7D and Additional file 3: Fig. S14C, D). One case was unaffected by any perturbation (Fig. 7E). All response patterns persisted when data were resampled to the median organoid number of each case (Additional file 3: Fig. S15). Moreover, when reliability of the genetic perturbations was tested by transducing spatially distinct scrapes from a mastectomy, we observed the same pattern of response in both despite pronounced differences in volumetric growth rate (Additional file 3: Fig. S16). Neither NQO1 nor NFE2L2 are recurrently mutated in breast cancer, but they drive other cancers [67] and their non-oncogenic regulation [68] may confer patient-specific growth and adaptive properties. Combining zero-passage organoids with genetic modifications enables these properties to be rapidly interrogated.

Discussion

Through speed and miniaturization, zero-passage organoids preserve luminal breast cancers long enough to distinguish patient-specific growth phenotypes after chemical or genetic perturbation. By hewing closely to standard clinical procedures, we successfully engaged a composite team of surgeons and pathologists without incurring detectable batch effects in organoid success. The scrape-to-organoid pipeline should be extendable to any medical center where surgery, pathology, and research facilities are nearby. The two-week time frame of zero-passage organoids aligns well with adjuvant decisions about therapy that do not occur until one month after surgery or later. In the future, it may be possible to inform early therapy decisions by iterating different treatment scenarios through zero-passage organoids in parallel. Immediately, the approach provides a reliable source of primary material to complement research in luminal breast cancer cell lines and animal xenografts.

Central to the zero-passage approach is parallelization through miniaturized replicates that do not sacrifice growth, viability, or technical reproducibility. The number of replicates and thus independent variables is limited by the total material from the tumor scrape and the fraction of that material per replicate. The lower limit of 5 µl might not be surmounted with smaller microwell plates—2 µl of matrigel in a low-volume 384-well plate creates a cylindrical plug no taller than the diameter of an average organoid. Smaller samples may also become less reflective of the overall tumor heterogeneity; we occasionally noted instances where culture volumes differed in organoid size variability (Additional file 3: Fig. S4C). At the existing scale, we believe there is great potential to collect more readouts from zero-passage organoids. We used serial brightfield imaging and transcriptomics here but foresee alternative endpoints quantifying cell death, cytokine release, and protein localization. Clearly, organoid phenotypes should be focused on responses to the interventions planned.

A persistent challenge in working with luminal breast cancer cells ex vivo is loss of hormone receptors, which transcriptionally downregulate after just a few days of standard tissue culture [69]. Luminal breast cancer lines are outliers that represent an oversimplification of primary tumor states [70]. Organoid conditions do not fix the problem of luminal-to-basal trans-differentiation [12, 31] but may postpone it long enough for zero-passage cultures to yield biological insight. Indeed, the tamoxifen responsiveness we often observed suggests that ESR1 signaling remains intact. Our paired comparison with monolayer-cultured cells indicates that decreases in hormone receptors are less severe when embedded in the adhesive and mechanosensory environment of matrigel. Traditional 2D culture and the unlimited access to oxygen, nutrients, metabolites, and signaling molecules it provides may accelerate hormone receptor decline by fostering proliferation over cell–cell and cell–matrix interactions typical of solid tumors [71, 72]. Looking ahead, it may be possible to extend the zero-passage window beyond two weeks by using alternative culture conditions [30, 35, 73] or hydrogel matrices [74] designed to maintain hormone receptors.

Conclusions

Zero-passage organoids consider each set of molecular and genetic perturbations as an n-of-1 study specific to a patient. In contrast to n-of-1 clinical trials, organoids accommodate paired designs with control, alternative, and interactive arms that strengthen local interpretations. Organoid phenotypes can support clinical decision-making without predicting long-term patient outcomes directly. Variation between zero-passage organoids derived from different patients is considerable, yet rigorous findings that are truly translatable should replicate nonetheless, with outliers probed more deeply by sequencing. Our study minimizes barriers to accessing authentic luminal breast cancer cells, examining their properties, and testing their vulnerabilities.
